PART NO.
型號
MATERIAL
材質

MATERIAL
THICKNESS

料厚
(mm)

DIMENSION
尺寸(mm)

REMARKS
(LOOSE PIECE)

備註
WHDE L S
CT 18705
CT 18708
03NICKEL STEEL 0.5
0.8
4.756.06.410.5 14.0 4.0 5K/P
CT 25008 03NICKEL STEEL 0.8 6.35 7.67.812.0 15.6 4.0 5K/P

PART NO.
型號
MATERIAL
材質

MATERIAL
THICKNESS

料厚
(mm)

ANGLEDIMENSION
尺寸(mm)

REMARKS
(LOOSE PIECE)

備註
WHDE L S
CT45 18705
CT90 18708
03NICKEL STEEL 0.5
0.8
45°
90°
4.756.07.03.5 7.0 4.0 5K/P






PART NO.
型號
MATERIAL
材質

MATERIAL
THICKNESS

料厚
(mm)

DIMENSION
尺寸(mm)

REMARKS
(LOOSE PIECE)

備註
WHDE L S

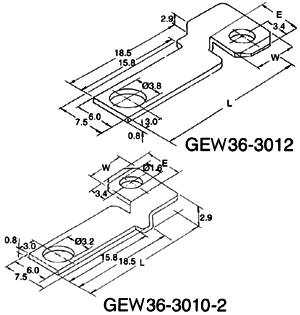

GEW 36-3012
GEW 36-3012-2
03NICKEL STEEL 0.8 4.75--6.5 24.2 -1K/P

PART NO.
型號
MATERIAL
材質

MATERIAL
THICKNESS

料厚
(mm)

DIMENSION
尺寸(mm)

REMARKS
(LOOSE PIECE)

備註
WHDE L S
TM 18705
TM 18708
03NICKEL STEEL 0.5
0.8
4.756.06.410.5 14.0 4.0 5K/P
TM 25008 03NICKEL STEEL 0.8 6.357.67.812.0 15.6 4.0 5K/P

PART NO.
型號
MATERIAL
材質

MATERIAL
THICKNESS

料厚
(mm)

DIMENSION
尺寸(mm)

REMARKS
(LOOSE PIECE)

備註
WHDE L S
TM 18805
TM 18808
03NICKEL STEEL 0.5
0.8
4.75--10.5 14.0 4.0 5K/P

PART NO.
型號
MATERIAL
材質

MATERIAL
THICKNESS

料厚
(mm)

ANGLEDIMENSION
尺寸(mm)

REMARKS
(LOOSE PIECE)

備註
WHDE L S
TM45 18705
TM90 18708
03NICKEL STEEL 0.5
0.8
45°
90°
4.756.06.47.0 7.0 4.0 5K/P

PART NO.
型號
MATERIAL
材質

MATERIAL
THICKNESS

料厚
(mm)

DIMENSION
尺寸(mm)

REMARKS
(LOOSE PIECE)

備註
WHDE L S
TK 25008 03NICKEL STEEL 0.8 6.357.77.713 15.6 5 5K/P

PART NO.
型號
MATERIAL
材質

MATERIAL
THICKNESS

料厚
(mm)

ANGLEDIMENSION
尺寸(mm)

REMARKS
(LOOSE PIECE)

備註
WHDE L S
TK45 25008
TK90 25008
03NICKEL STEEL 0.845°
90°
6.357.77.78.2 8.2 5 5K/P

PART NO.
型號
MATERIAL
材質

MATERIAL
THICKNESS

料厚
(mm)

DIMENSION
尺寸(mm)

REMARKS
(LOOSE PIECE)

備註
WHDE L S
DT 18708 03NICKEL STEEL 0.8 4.756.5713.7 27.7 3.2 5K/P

PART NO.
型號
MATERIAL
材質

MATERIAL
THICKNESS

料厚
(mm)

ANGLEDIMENSION
尺寸(mm)

REMARKS
(LOOSE PIECE)

備註
WHDE L S
TB45 18705
TB90 18708
03NICKEL STEEL 0.5
0.8
45°
90°
4.757.06.48.8 8.8 2.7 5K/P

PART NO.
型號
MATERIAL
材質

MATERIAL
THICKNESS

料厚
(mm)

ANGLEDIMENSION
尺寸(mm)

REMARKS
(LOOSE PIECE)

備註
WHDE L S
AT45 25008
AT90 25008
01BRASS0.845°
90°
6.357.87.66.1 10.9 - 5K/P

PART NO.
型號
MATERIAL
材質

MATERIAL
THICKNESS

料厚
(mm)

DIMENSION
尺寸(mm)

REMARKS
(LOOSE PIECE)

備註
WHDE L S
AT 25008 01BRASS0.8 6.357.67.83.5 15.6 - 5K/P

PART NO.
型號
MATERIAL
材質

MATERIAL
THICKNESS

料厚
(mm)

DIMENSION
尺寸(mm)

REMARKS
(LOOSE PIECE)

備註
WHDE L S
ST 18705 02TINNED BRASS 0.5 4.756.47.14.0 13.0 -10K/P
